How to choose a dust-free cotton swab? A complete analysis of 10μm particle control and ISO certification standards

In the fields of precision manufacturing and biotechnology, the selection of clean room consumables is directly related to the stability of the production quality system. As a core cleaning tool, dust-free cotton swabs, their technical specifications are often a key factor in determining the success of the process. According to ISO 14644-1 international standard, in Class 5 clean environments, a single swab releases particles more than 5 μm, which can cause a multimillion-dollar quality accident.

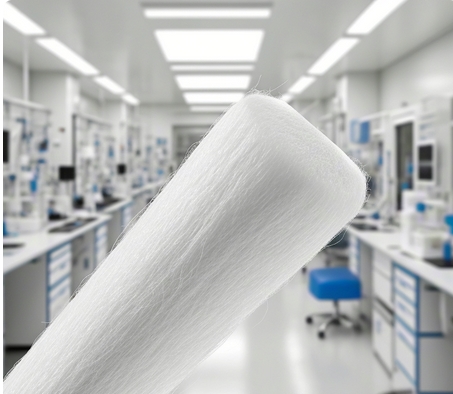

There are significant technical differences between professional-grade dust-free cotton swabs and traditional cleaning equipment. Taking the 12-inch wafer cleaning process as an example, dust-free cotton swabs that meet the specifications need to meet the technical window of surface resistance values of 10^4-10^9Ω/s. This key parameter can effectively control the accumulation of static electricity. Its precision construction includes three core components: a laser-cut 0.1 denier polyester microfiber head (equivalent to 1/100th of hair strand), a medical grade epoxy bonding interface, and an injection-molded conductive polymer handle. This structural design ensures that the fiber shedding rate is below the industry standard of 10 particles per square centimeter when cleaning the CMOS sensor.

The risks of traditional cleaning tools in controlled environments have been confirmed by experimental data: ordinary cotton swabs will produce 0.3-1.2μm suspended particles when wiped by isopropanol, which will form aerosol contamination in laminar flow environment. A quality accident report from a multinational medical device company shows that the use of wooden-handled cotton swabs caused contamination of precision microfluidic chips, resulting in the scrapping of 12,000 products in a single batch, and the direct loss reached US$2.8 million. What's more serious is that the swelling rate of ordinary binders in ketone solvents can reach 15%, far exceeding the industry's allowed 3% threshold.

The quality certification system puts strict requirements on dust-free cotton swabs, and must also have three core qualifications: ISO 14644 Class 5 production environment certification (particle concentration ≤3,520 particles/m³), USP Class VI cytotoxicity test report (cell survival rate ≥90%), and a cleanliness certificate under the BEST-STD-D standard (non-volatile residue<10μg/cm²). In the field of vaccine production, dust-free cotton swabs also need to pass EP 2.6.1 bacterial endotoxin detection, and the endotoxin content must be lower than the pharmaceutical water standard of 0.25 EU/ml.

Electrostatic protection performance is an important indicator for measuring the technical level of dust-free cotton swabs. The anti-static cotton swab processed through surface modification technology has a stable resistance value in the range of 10^6-10^8Ω. This numerical range has been verified by EMC laboratory to effectively suppress electrostatic discharge phenomenon below 3kV. In the AMOLED panel manufacturing process, the use of standard cotton swabs can reduce the electrostatic damage rate from the conventional 0.8% to below 0.12%, which is equivalent to reducing 6,800 defective products per million panels.

The latest test data of the semiconductor industry shows that after a well-known memory chip manufacturer used professional-grade dust-free cotton swabs in the production line upgrade, the core indicators have been significantly improved. Through a three-month comparison experiment, the average wafer yield rate jumped from the initial 92.7% to 98.4%, the incidence of electrostatic discharge (ESD) damage has a 76% drop, which is equivalent to a reduction of about $3.2 million in potential mass losses per year.

In the field of precision electronic manufacturing, the selection of professional consumables requires strict consideration of the three major technical parameter systems. First, the cleanliness of the material must meet the ISO 14644-1 Class 5 standard, which means that the number of particles ≥0.5μm in each cubic meter of air must be controlled within 3,520. Secondly, structural integrity needs to pass a 500g pressure test to simulate the mechanical environment in which the cotton swab head contacts the wafer surface during actual use. The third level evaluation involves chemical compatibility verification, requiring that the solution concentration of cotton swab materials will always be lower than 5ppm after being exposed to 75% ethanol and acetone.

The industry-leading dust-free cotton swab manufacturers generally use gamma-ray terminal sterilization technology. This high-energy ionizing radiation penetrating product packaging achieves complete sterilization, and the sterilization guarantee level (SAL) reaches 10^-6 levels. Its purification and packaging workshop strictly follows the ISO level 8 (100,000-level) clean standards, and uses real-time monitoring of laser particle counters to ensure that the particle release amount of a single cotton swab is always maintained below the ISO level 3 threshold.
