Pharmaceutical Equipment Cleaning Validation: TOC Swab Sampling Specifications and Quality Control Best Practices

【TOC Cleaning Verification Cotton Waffle Operation Specifications and Sampling Technical Guide】

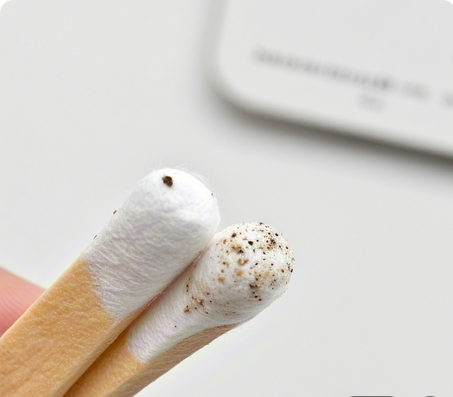

Material selection and pretreatment specifications. In the cleaning verification process, cotton swab selection directly affects the accuracy of the test results. It is recommended to use a special TOC cleaning verification cotton swab with double-layer polyester knitted. Its low background value characteristics can control the TOC background value below<50μg/L (equivalent to 50ppb). Compared with traditional cellulose cotton swabs, this type of professional sampling tool can effectively avoid organic contamination caused by fiber shedding, and is especially suitable for wiping and sampling of key surfaces such as pharmaceutical equipment and bioreactors.

The solvent quality control standard recommends the use of injection water filtered through a 0.22μm filter membrane as the dissolution medium, and its TOC blank value should be verified regularly and maintained at ≤5ppb. For fat-soluble residues, chromatographic ethanol can be used for sampling, but the compatibility of the organic solvent with the surface to be tested must be confirmed in advance. Experimental data show that the TOC recovery rate can reach 92%±3% when using ultrapure water, which is significantly better than ordinary deionized water (the recovery rate is only 78%±5%).

Standardized sampling operation process 1. Key points of surface pretreatment technology Before sampling, make sure that the surface of the equipment is completely dry, and residual moisture will dilute the active ingredients and lead to false negative risks. For complex structures (such as three-dimensional bellows, welded joints, etc.), the "worst conditions" principle should be followed, and the area with the highest risk of fluid retention should be selected as the sampling point.

Cotton swab wetting operation standard: immerse the head of the swab vertically into the solvent for about 1 cm depth, and extrude the excess liquid sideways through tweezers to achieve the ideal state of "wet but not dripping" (water content is controlled at 0.2-0.3mL). This step is like precision titration, and the consistency of the technique is required to ensure sampling reproducibility.

The standard sampling area of the wipe area calculation model is set to 25cm² (5×5cm). When the detection limit requirements are less than 1μg/cm², it can be expanded to 100cm² (10×10cm). For small device components, it is recommended to use a geometric correction formula: actual sampling area = π×(contact width)×(wipe length) to ensure data comparability.

The mechanical wipe operation specification adopts a 45° angle double-sided wipe method: the first round of wipe is covered with an "S"-shaped path along the longitudinal direction of the equipment, and then the cotton swab is flipped and cross-wiped is performed. This two-way wiping mode is like a precision plow, which can effectively improve the collection efficiency of surface residues. The recommended sampling time for each swab is controlled within 30 seconds and the pressure is maintained in the 3-5N range.

Sample recycling and storage technology cut the head of the sampled cotton swab into a 15mL centrifuge tube pre-installed with 10mL solvent, seal and mark the sampling coordinates immediately. Studies have confirmed that low temperature (4℃) storage can extend the stability of TOC to 72 hours, which is 67% lower than that of the sample stored at room temperature. It is recommended to choose a simulated polypropylene material, which has TOC background value of more than 40% lower than that of ordinary materials.

The operation specification for complex surface sampling is for special structures such as threaded interfaces and mechanical grooves. It is recommended to extend the wipe time to 1.5 times the standard process.

Professional tools such as the Okinawa K0 long rod TOC cleaning verification cotton swab, its 30cm adjustable rod body and microfiber cloth head can accurately complete the channel sampling with a depth diameter ratio of ≥5:1. In the medical device industry, this cotton swab has been successfully used for cleaning verification of complex structures such as endoscopic lumen.

Key points of sample pretreatment technology 1. The extraction of organic residues can use a vortex oscillator (parameter setting: 2500rpm, 30 min) combined with ultrasonic water bath (40kHz, 45℃) composite extraction method, which can increase the dissolution efficiency of organic pollutants on the cotton swab surface to more than 92%. USP

Sample storage specification extract should be transferred to a brown glass storage bottle within 2 hours, and the storage aging should not exceed 48 hours under refrigeration conditions (4±2℃). Verification data from a multinational pharmaceutical company shows that cotton swabs made of polypropylene will release interfering carbon sources in acidic solvents for more than 72 hours, resulting in a deviation of TOC detection value of 15%.

Key processes for TOC analysis 1. Three-level calibration is required before the daily inspection of the instrument calibration standard: zero-point calibration (ultrapure water), system suitability calibration (potassium biphthalate standard solution), linear verification (R²≥0.995). It is recommended to refer to the EP 2.2.44 standard to establish the limit of detection (LOD) and limit of quantification (LOW).

The calculation formula of data processing principles requires deducting the double interference between the solvent background value and the cotton swab blank value. A case of a biopharmaceutical company shows that using low-TOC certified cotton swabs can reduce background interference to below 0.05ppm, significantly improving detection accuracy.

Core elements of quality assurance 1. Powder-free nitrile gloves should be worn throughout the operation of the pollution prevention and control system. It is recommended to use microscopic operation technology in the sampling area with a contact area of ≤1cm². Laboratory comparison data shows that standardized operations can control the human contamination rate below 0.3%.

The recovery rate verification method is recommended to use matrix spiking method: 50μg/cm² sucrose standard products are coated on the surface of 304 stainless steel, and after sampling with TOC cleaning verification swab, the recovery rate should reach 70±5%. FDA guidelines state that for surface contact with high-risk products, the standard for recycling rate acceptance should be increased to more than 80%.

The electronic recording system for data integrity management should include three-level audit trails: operation log (accurate to seconds), environmental parameters (temperature fluctuations ≤±1℃), and equipment verification status.
