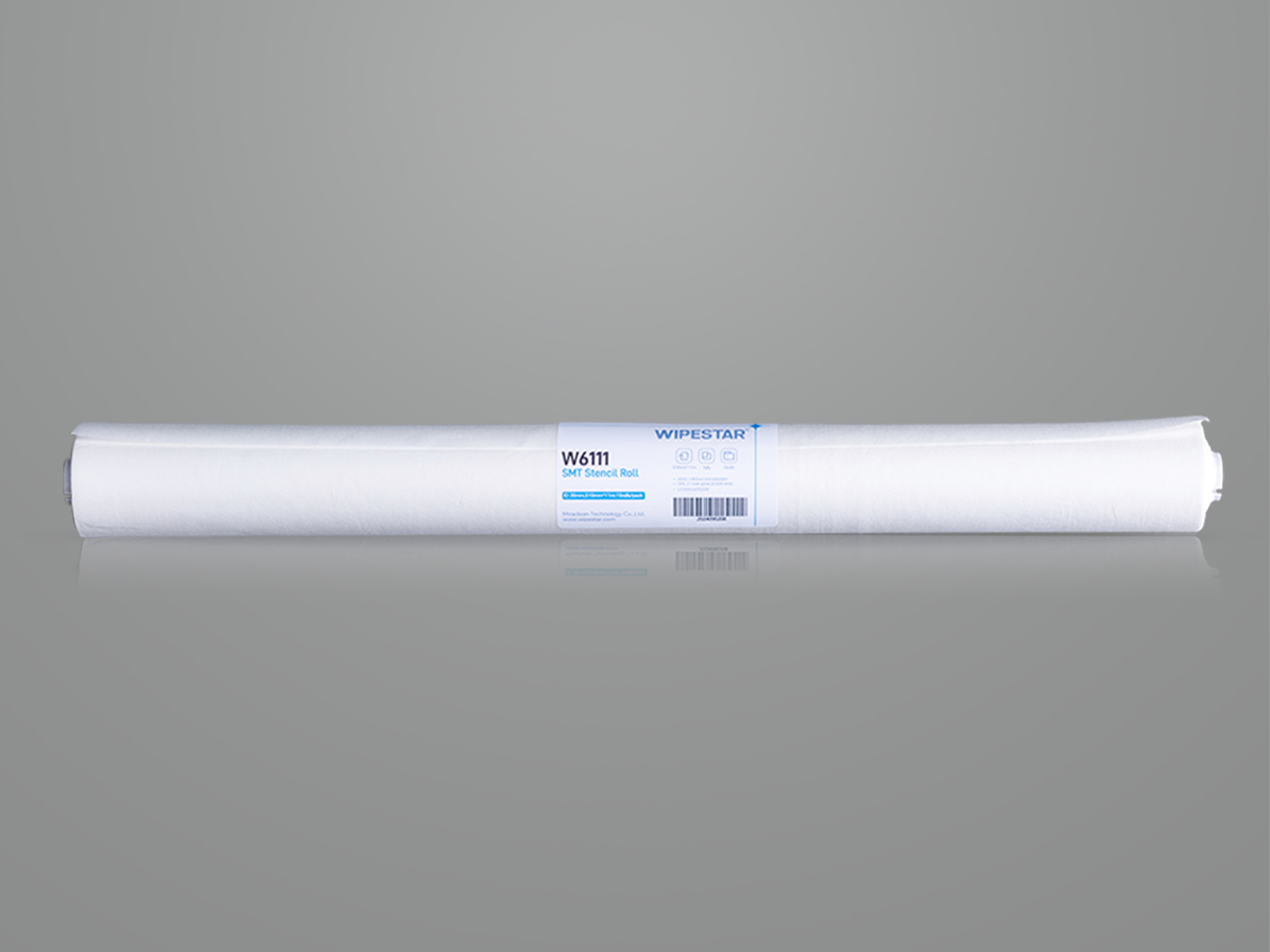

In today's demanding electronics manufacturing environment, maintaining consistent print quality while maximizing production efficiency is crucial. Our Wipestar stencil rolls for DEK screen printers represent the pinnacle of understencil cleaning technology, designed specifically to meet the exacting demands of modern SMT production lines.
Understanding the challenges of stencil printing processes, we've engineered our cleaning rolls with a precise blend of polyester and cellulosic fibers. This carefully balanced composition delivers exceptional cleaning performance while maintaining the critical characteristics needed for high-volume production. Our special non-woven fabric construction significantly reduces lint generation, effectively preventing aperture blockages and contamination that can compromise print quality.
Production efficiency is at the heart of our design philosophy. With a minimum length of 11 meters per roll, our products reduce the frequency of changeovers, helping to minimize production interruptions. The solvent-resistant material provides increased absorption per square inch, ensuring thorough cleaning with optimal solvent usage. This superior absorption capability, combined with fast-wicking properties, ensures even distribution of cleaning agents across the full width of the roll, delivering consistently excellent cleaning results.

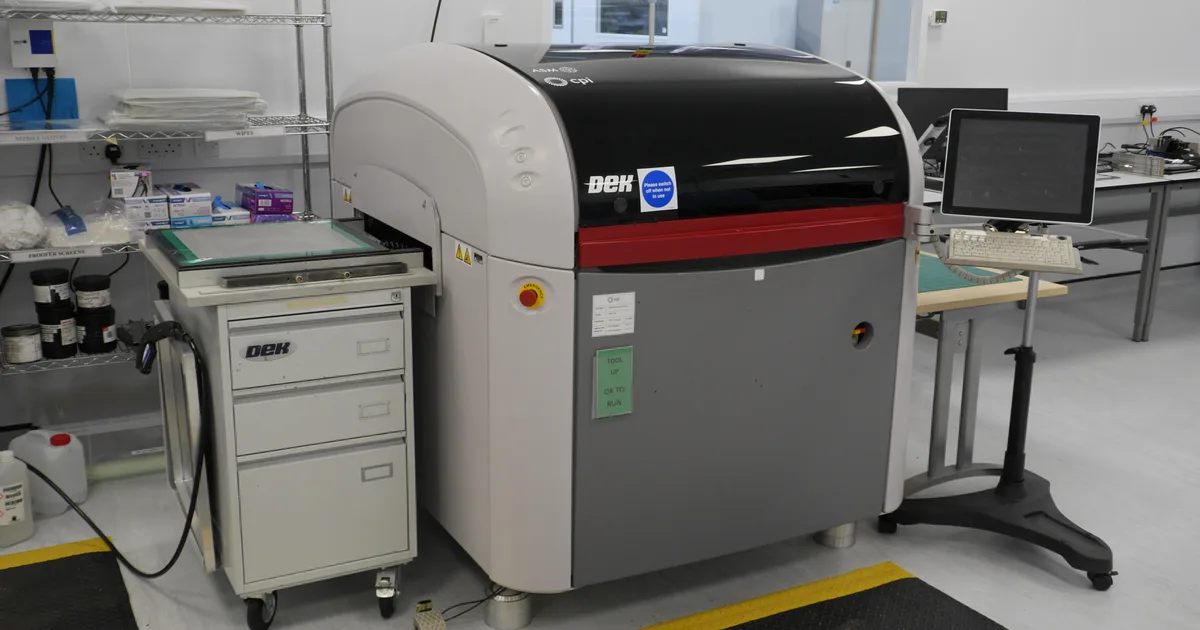

Our stencil rolls are specifically engineered to work seamlessly with DEK platforms, including advanced understencil cleaners such as DEK Cyclone technology. The fabric's unique construction maintains optimal vacuum power, ensuring maximum cleaning effectiveness for both dry and wet cleaning cycles. This dual-capability cleaning performance helps prevent common printing defects such as smearing, bridging, and solder balls, maintaining the high quality standards demanded by modern electronics manufacturing.
Model | W6106 | W6107 | W6108 | W6109 | W6110 | W6111 |
Base Weight | 56g | 56g | 56g | 56g | 56g | 56g |
Color | White | White | White | White | White | White |
Fabric | 55% Cellulose | 55% Cellulose | 55% Cellulose | 55% Cellulose | 55% Cellulose | 55% Cellulose |
Edge Sealing | Cold Cut | Cold Cut | Cold Cut | Cold Cut | Cold Cut | Cold Cut |
Core ID | 20mm | 20mm | 20mm | 20mm | 20mm | 20mm |
Core Thickness | 1.5mm | 1.5mm | 1.5mm | 1.5mm | 1.5mm | 1.5mm |
Core Length | 530mm | 530mm | 530mm | 530mm | 530mm | 530mm |
Core End Type | 2 at each end | 2 at each end | 2 at each end | 2 at each end | 2 at each end | 2 at each end |
Roll Width | 250mm | 300mm | 400mm | 490mm | 500mm | 510mm |
Roll Length | 10m | 10m | 10m | 10m | 10m | 10m |
Packaging | 15 rolls/box | 15 rolls/box | 15 rolls/box | 15 rolls/box | 15 rolls/box | 15 rolls/box |
Application | DEK Printers | DEK Printers | DEK Printers | DEK Printers | DEK Printers | DEK Printers |
Lint Level | Very Low | Very Low | Very Low | Very Low | Very Low | Very Low |
Solvent Resistance | High | High | High | High | High | High |
Wicking Speed | Fast | Fast | Fast | Fast | Fast | Fast |
Vacuum Compatibility | Compatible | Compatible | Compatible | Compatible | Compatible | Compatible |
Internal Ribs | 0 | 0 | 0 | 0 | 0 | 0 |
Cleaning Cycles | Dry and Wet | Dry and Wet | Dry and Wet | Dry and Wet | Dry and Wet | Dry and Wet |
By choosing to work with us, you're not just getting a consumable product – you're investing in production efficiency and quality assurance. Our commitment to manufacturing excellence is reflected in every aspect of our products, from the precise core specifications to the consistent cleaning performance. Whether you're operating standard DEK printers or advanced platforms with Cyclone technology, our stencil rolls deliver the reliable, high-performance cleaning solution your production line demands. Partner with us to experience the difference that superior understencil cleaning technology can make in your manufacturing process.
