The roll design is better suited for automated equipment. Suitable for:
● Wafers, TFT, LCM (liquid crystal display modules), LCM port terminals, and the LED industry.
● Terminals of LCD modules, micro motor cleaning tapes, and the optoelectronics industry.
● Phone cover glass (CG), camera cover glass (CG), stainless steel sheets, digital printer heads, OCA full lamination, dispensing machine needles, assembled phone products, and optical fibers.
● Class 100 to Class 100,000 cleanroom environments.
Request for Quote

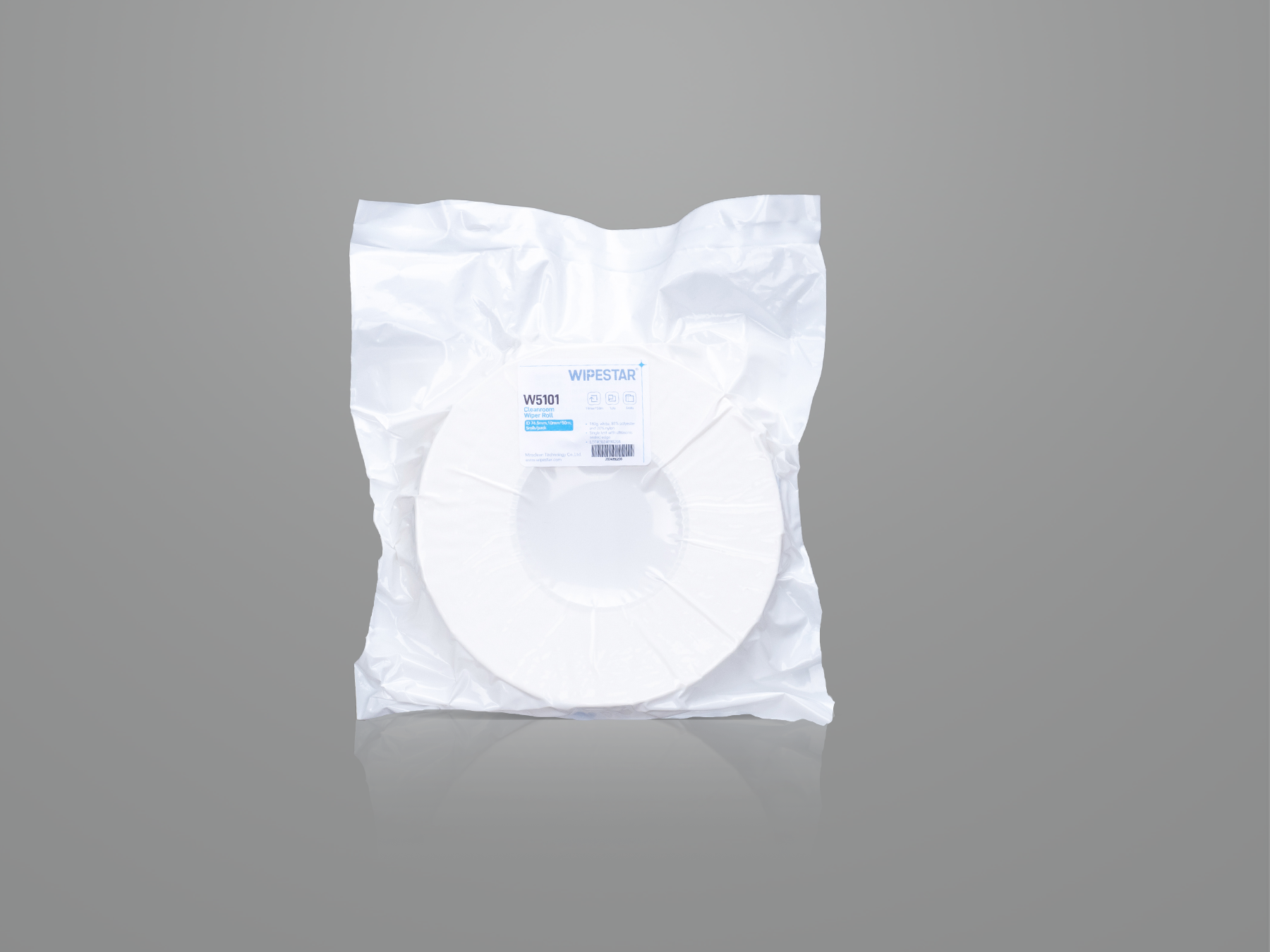

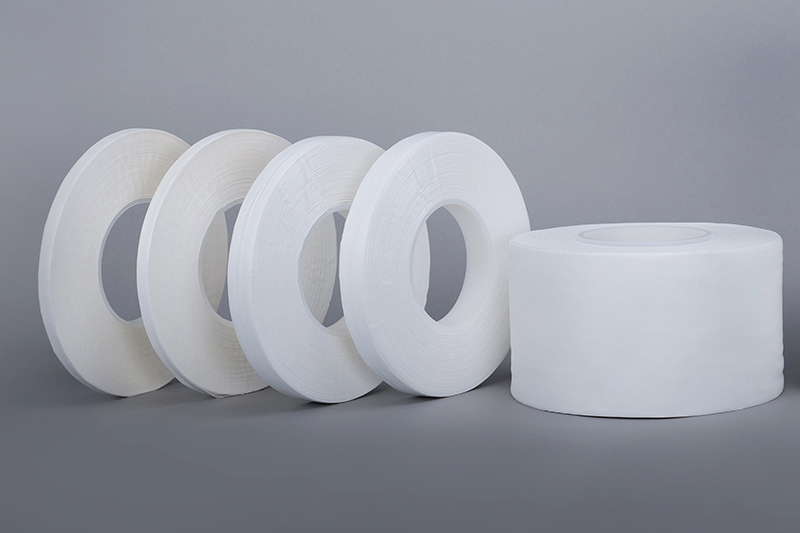

WIPESTAR cleanroom wiper rolls are made from microfiber and designed with perforated rolls setting up on machines for automated cleaning, and it is significantly reducing costs.

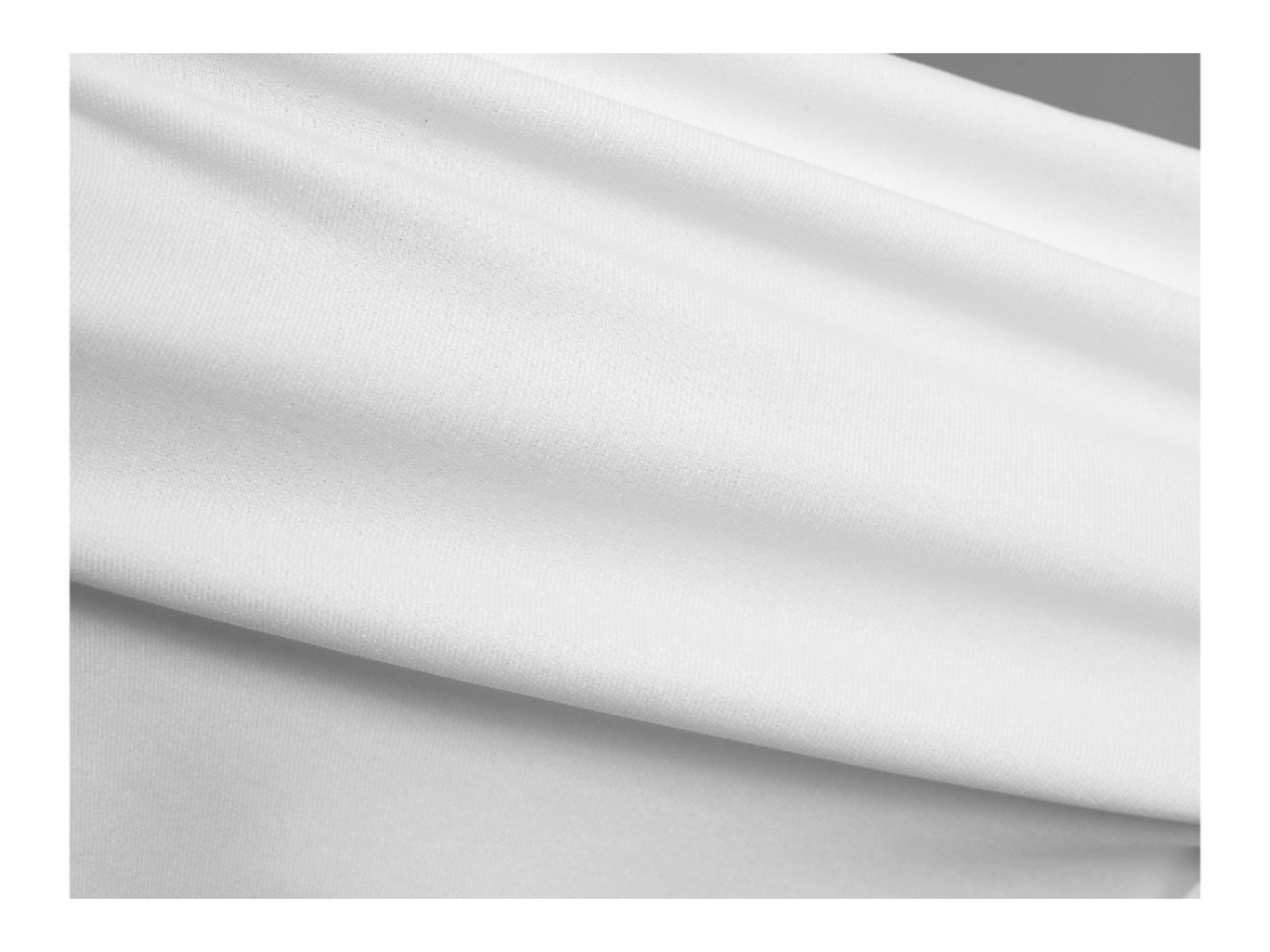

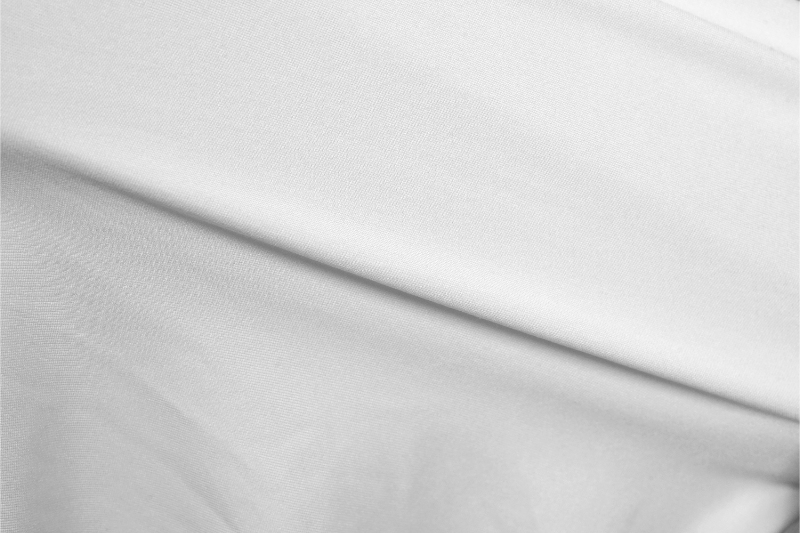

The fabric texture is soft and delicate with strong cleaning capability.
The four edges are ultrasonic sealed with a fabric weight of 180 GSM.
Available in 6 sizes.
● Ultra-fine fibers have strong removal capabilities for fingerprints, oil stains, ink stains, and powder stains, especially for particles smaller than 0.5µm.
● Silicone-free, low dust generation, low ion content, and low NVR, suitable for critical environment wiping.
● The soft and delicate fabric texture is ideal for wiping scratch-prone surfaces such as optical lenses, with minimal lint and residue.
● Available in laser sealed edge or ultrasonic sealed edge. The cloth is flat and smooth, not easy to be damaged, and has high cleanliness.
● Produced in a Class 100 cleanroom and laundered with ultra-pure water.

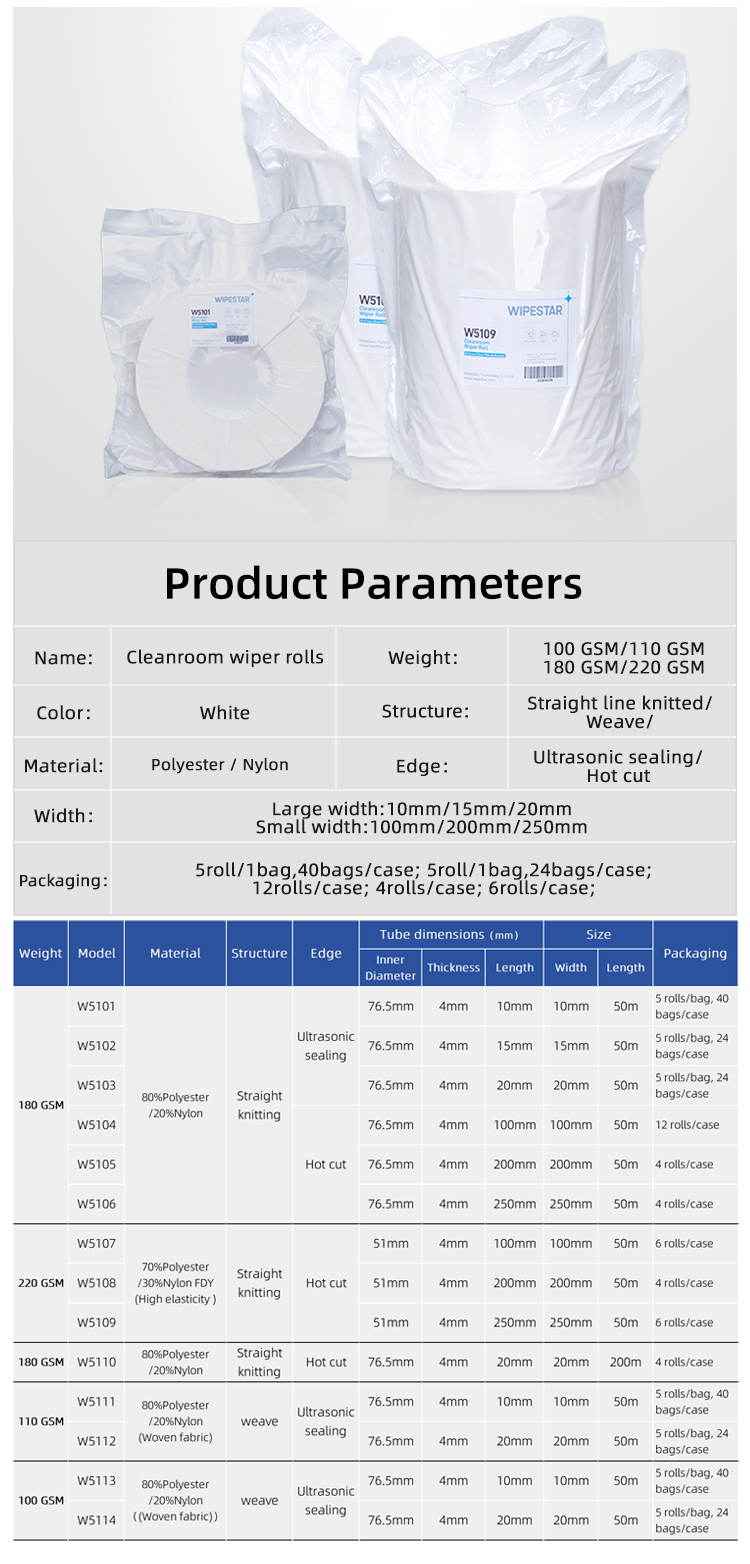

| Model | Weight | Material | Size | Pattern | Structure | Color | Packaging | Edge | Shipping |
| W5101 | 180 GSM | 80%Polyester/20%Nylon | Cloth size: 10mm x 50m Tube inner diameter: 76.5mm Tube thickness: 4mm Tube length: 10mm |
Plain | Single knitting | White | Perforated roll | Ultrasonic sealing | 5 rolls/bag, 40 bags/case |
Model
Weight
Material
Size
Pattern
Structure
Color
Packaging
Edge
Shipping
Request a Sample
